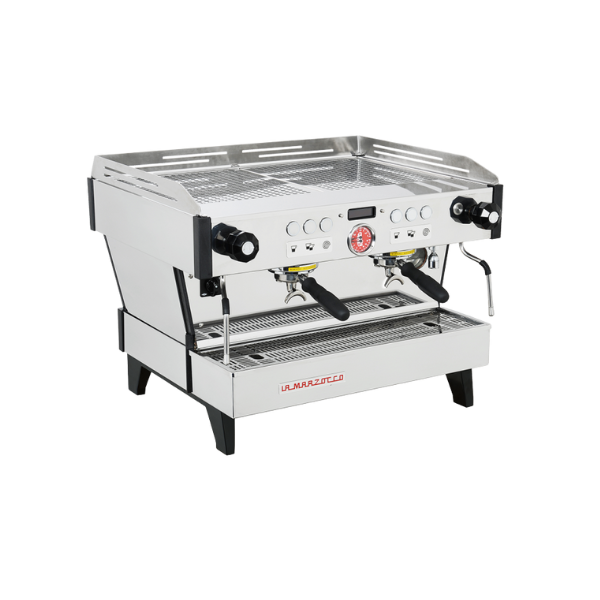

Carefully designed to blend into any setting, the Linea Classic – with its dual boiler system, saturated groups and PID controller, is a work of art that is linear in design and dressed in polished stainless steel and includes stainless steel portafilters and advanced precision baskets.

Its clean lines and simple charm furnish the many cafés, roasters, and chains whose names have defined the specialty coffee industry and has buoyed the development of the specialty coffee industry since the early 1990s.

engineering

saturated groups
ensure unsurpassed thermal stability, shot after shot.

dual boiler system
separate boilers optimize espresso brewing and steam production.

pid temperature controller
electronic, algorithmic control of the espresso brewing temperature (+/- 0.5°C).

insulated boilers
reduce energy consumption while contributing to temperature stability.

technical specifications

specifications	2grp	3grp	4grp
Height (cm/in)	45,5 / 18	45,5 / 18	45,5 / 18
Width (cm/in)	69 / 28	93 / 37	117 / 46
Depth (cm/in)	56 / 22	56 / 22	56 / 22
Weight (kg/lbs)	51 / 112,4	66 / 145,5	83 / 183
Voltage (VAC)	200 single / 3 phase 220 single / 3 phase 380 3 phase	200 single / 3 phase 220 single / 3 phase 380 3 phase	200 single / 3 phase 220 single / 3 phase 380 3 phase
Wattage Elements	3600	4800	6800
Optional Wattage Elements	4600	6100	8000
Coffee boiler (L)	3,4	5	6,8
Steam boiler (L)	7	11	15
